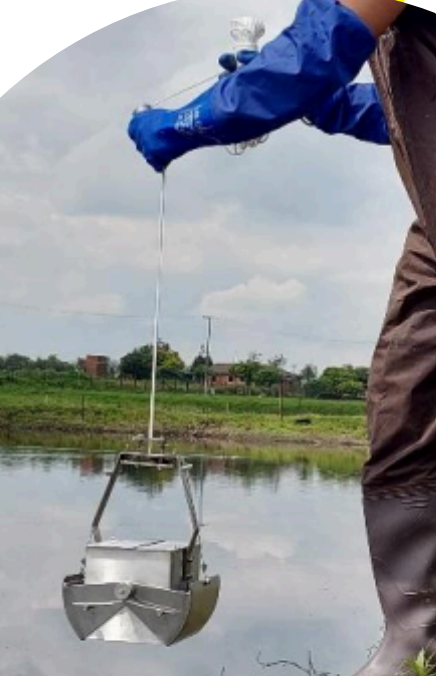

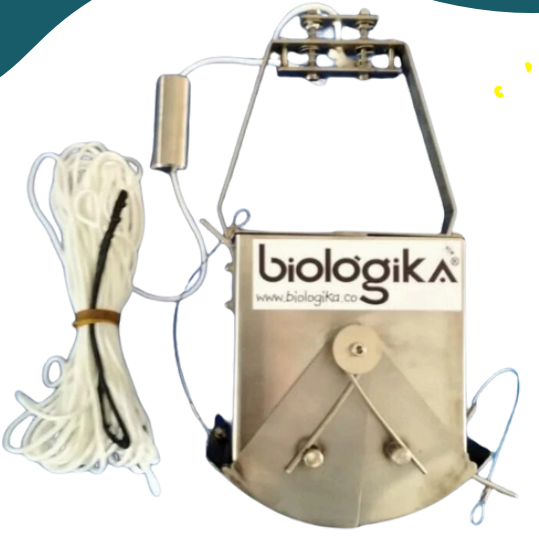

EKMAN-TYPE DREDGE

$0,00 COP

Sale Sold out

Maximum sampling capacity: 3.37 liters.
Maximum sampling area: 225 cm².
Approximate net weight: 10.5 lb.
Structure: cubic body (6” x 6” x 6”), made of 16-gauge stainless steel sheet.
Upper gate system: rectangular stainless steel gates that open during descent, allowing water circulation and reducing the shock wave produced when the bottom sample is taken.
Closing mechanism: made up of a spring-and-cable system, entirely constructed in stainless steel.
Drag line: 20 m nylon cord (considered a consumable product not covered by warranty).
Messenger: solid stainless steel body weighing approximately 500 g. It activates the closing mechanism of the lower gates so the sample can be collected.
Lower gate system: semicircular stainless steel gates, activated by springs made of the same material, responsible for collecting the sample once the dredge is triggered.
